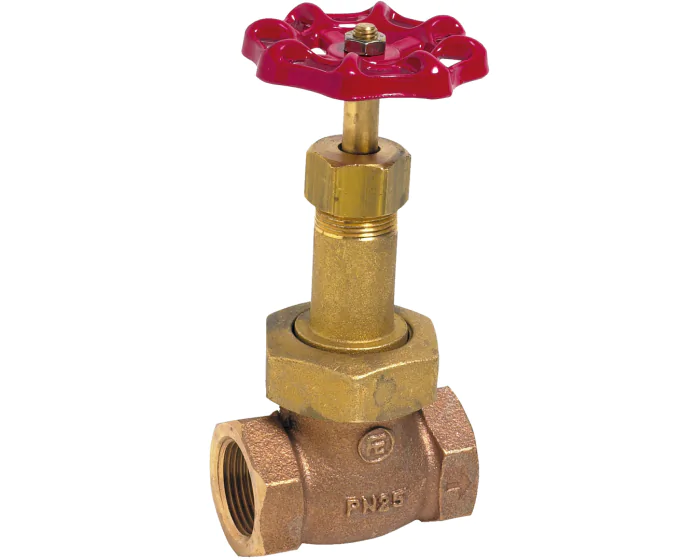

Bronze globe valve 451 with metal-to-metal tightness and a stainless steel plug. Full bore, PN25, female BSP connections for water supply networks. Operates from -10°C to 180°C, ensuring reliable flow control and shut-off.
| Specification | Value |
|---|---|
| DN inches NPS | 1/4'' |
| DN metric | 8/13 |
| Bonnet material | Brass CW617N |
| Type of seat | parallel |
| CE risk category | III Module H |
| Thread standard | ISO 228-1 |
| Tightness test standard | EN 12266-1. Rate A |
| Steam | Yes |
| Opening device | Handwheel |
| Centering ring | Yes |
| Shaft/stem matérial | Brass CW614N |
| Opening device/signal | Manual |
| DN | DN8 - 1/4'' |
| Face to Face (mm) | 46.0 |
| Sealing | Metal / Metal |
| Fluid | Hot water / Cold water / Drinking water |
| Body material | Bronze |
| Bore | Full |
| PS (bar) | 25 |
| Connections | BSP FF |
| Seats | Stainless steel AISI 316 |
| TS max (°C) | 180 |
| TS min (°C) | -10 |
| Warranty period | 2 years |
| Type of stem | Rotating |
| CE | Yes |
| Plug material | Stainless steel AISI 316L |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Bronze Full 1/4'' | 451002 | S1010675 |
€53.76
(excl. btw)
|
add to cart |
| BSP FF Bronze Full 3/8'' | 451003 | S1010676 |
€53.86
(excl. btw)
|
add to cart |
| BSP FF Bronze Full 1/2'' | 451004 | S1010677 |
€61.23
(excl. btw)
|
add to cart |
| BSP FF Bronze Full 3/4'' | 451005 | S1010678 |
€83.79
(excl. btw)
|
add to cart |
| BSP FF Bronze Full 1'' | 451006 | S1010679 |
€112.67
(excl. btw)
|
add to cart |
| BSP FF Bronze Full 1''1/4 | 451007 | S1010680 |
€185.66
(excl. btw)
|
add to cart |
| BSP FF Bronze Full 1''1/2 | 451008 | S1010681 |
€223.39
(excl. btw)
|
add to cart |
| BSP FF Bronze Full 2'' | 451009 | S1010682 |
€323.66
(excl. btw)
|
add to cart |
